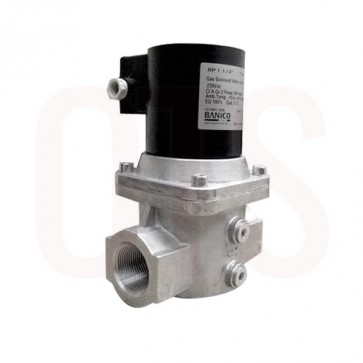

ZEV40 Banico 1 1/2" Gas Solenoid Valve 230v NC
Banico gas solenoid valve 1 1/2" BSP, 230v AC, Normally closed - energise to open, Two Way, Rapid opening. Suitable for Natural Gas, Propane and LPG.
1/4" Inlet and outlet plugs suitable for CPI switch, pressure gauge, connection to proving and gas interlock systems.
1/4" Inlet and outlet plugs suitable for CPI switch, pressure gauge, connection to proving and gas interlock systems.
CODE: ZEV40
Availability: 1 in stock
Ships Monday, August 4 if ordered in the next 2 days, 23 hours and 12 minutes!
Excl. Tax:
£106.00 Incl. Tax:
£127.20
Additional Info
Additional Info
| Equipment Manufacturer | banico |
|---|---|
| Manufacturer's List Price | £106.00 |
Description
Details
Gas solenoid valves are used for safety and control of gas shut off in gas feed pipes. Suitable for various gases, Natural, Propane and LPG. 1/4" Inlet and outlet plugs suitable for CPI switch, pressure gauge, connection to proving and gas interlock systems.
Rapid opening Mounting direct on pipeline more or less 90 degrees (max) from the vertical axis.
Closing Time <1 Second
Max number of operations: 20 per minute
1/4" Inlet and Outlet Plugs
Incorporated AISI 303 steel mesh filter
Cable Entry Gland PG11, Live, Neutral, Earth
Protection to IP54
NBR Based seal with a strong resistance to Hydrocarbons (UNI 4916-74)
Bodies and flanges in Die Cast Aluminium
AISI 302 steel pressure spring
Chromate Fe 37 Steel Armature
Ambient Temperature -15C to 60C
Coil Temperature about 70C
Operation and Installation
Two way normally closed, energise to openRapid opening Mounting direct on pipeline more or less 90 degrees (max) from the vertical axis.
Technical Specification
Opening Time <1 secondClosing Time <1 Second
Max number of operations: 20 per minute
1/4" Inlet and Outlet Plugs
Incorporated AISI 303 steel mesh filter
Cable Entry Gland PG11, Live, Neutral, Earth
Protection to IP54
NBR Based seal with a strong resistance to Hydrocarbons (UNI 4916-74)
Bodies and flanges in Die Cast Aluminium
AISI 302 steel pressure spring
Chromate Fe 37 Steel Armature
Ambient Temperature -15C to 60C
Coil Temperature about 70C
