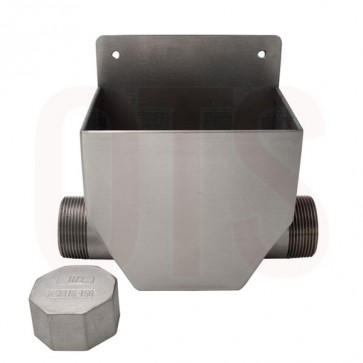

Stainless tundish's are widely used on combination oven installations that require an air break on the waste system. Install it on a solid wall, connect either iron or heat resistant plastic fittings to the 1 1/2" BSP connection and join into existing drain pipework. Using either a combination oven drain kit or stainless push fit drain system, easily pipe down and over the tundish. By using the tundish installation, you allow heat to escape from the drain and it also allows the equipment owner to easily move the oven for cleaning without the worry of cracking a hard plumbed drain.

140mm wide (235mm including nipples) x 100mm deep x 160mm high

Height includes 40mm fixing plate, 120mm body.
